Double Shaft Paddle Mixer – High-Efficiency Mixing for Feed, Medicine & Chemical Industries
With fast mixing cycles, exceptional uniformity, quick discharge, and durable construction,
it delivers consistent quality and operational efficiency for any batching process.
Product Overview

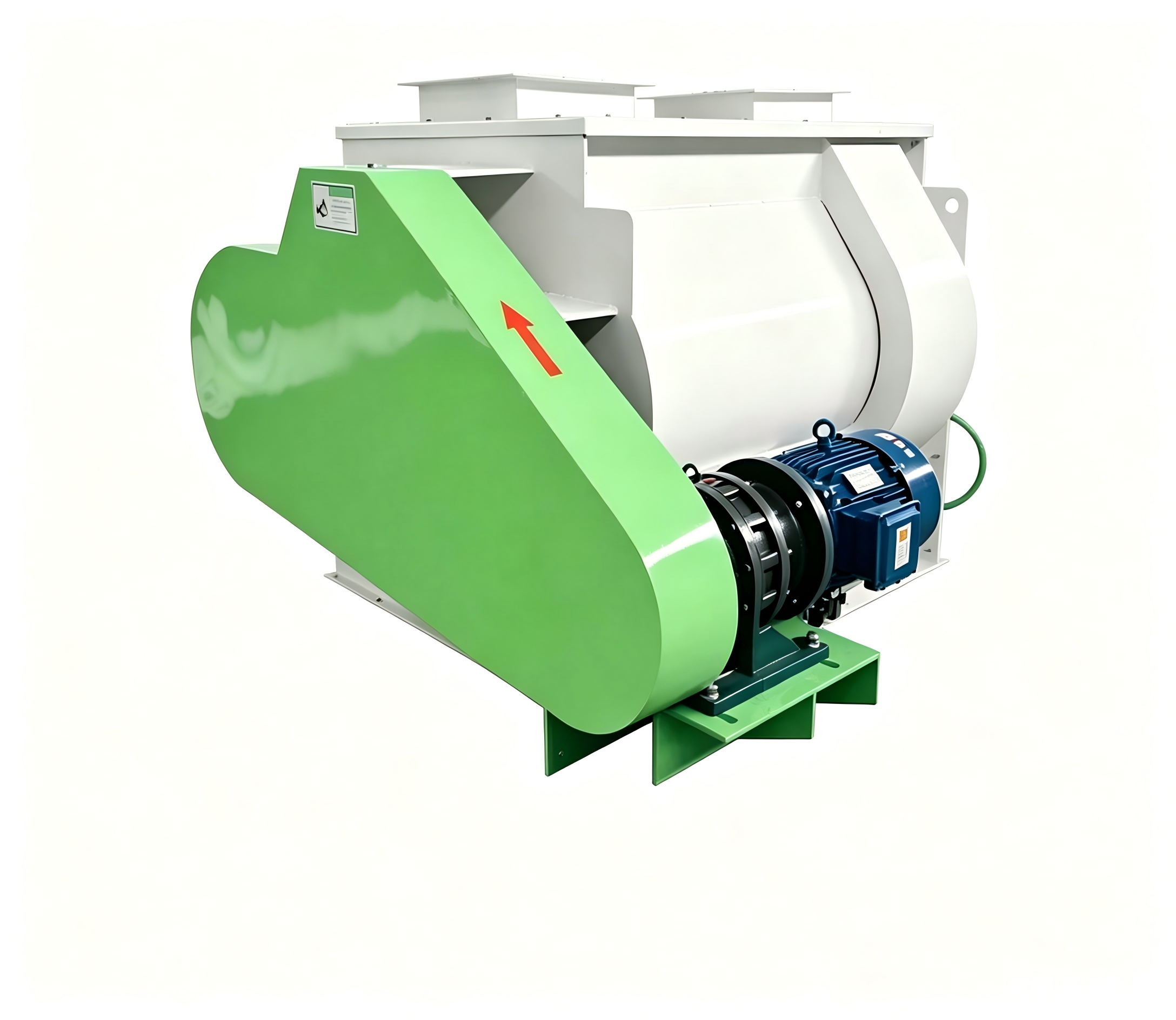

The 9HSY Series Double Shaft Paddle Mixer is a high-efficiency mixing equipment designed for powder, pellet, flake, block, and heterogeneous viscous materials. Widely used in feed, medicine, chemical industry, and other sectors, it delivers fast, uniform mixing with stable durability, meeting strict batching requirements across industries.
Technical Specifications
| Model | Matching Power (kW) | Capacity (kg/batch) | Exterior Dimension (mm) |
|---|---|---|---|
| 9HSY 1 | 11 | 500 | 2200×2000×1600 |
| 9HSY 2 | 18.5 | 1000 | 2650×2300×1700 |
| 9HSY 4 | 37 | 2000 | 3300×2800×2500 |
Key Features & Advantages
1. High Mixing Efficiency
Each batch takes only 60 to 90 seconds. The variation coefficient of mixing uniformity is below 5%, featuring high efficiency and precision to meet strict batching requirements across industries.
2. Optimized Chamber, Superior Mixing Effect
The enlarged mixing chamber is fitted with sturdy dual-shaft paddle rotors. Materials are fully tumbled, convected, and blended for larger contact area, achieving thorough and uniform mixing and consistently excellent finished quality.
3. Fast Discharge & Low Residue

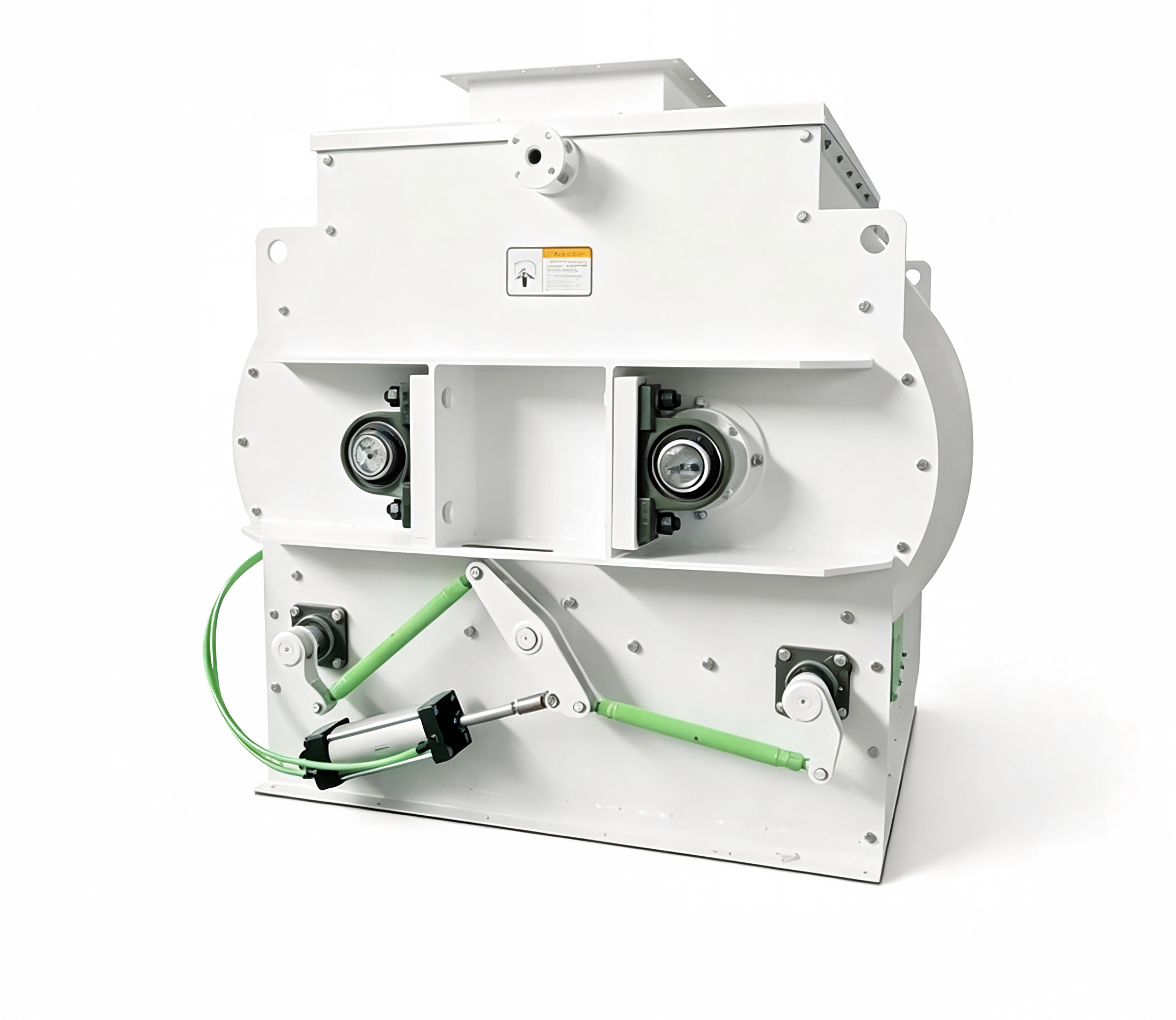

Designed with full-length double doors and large opening angle for smooth and unobstructed discharge. All kinds of materials are emptied rapidly with minimal residue, greatly boosting working efficiency and effectively reducing material waste.
4. Stable Durability
Built with robust construction and high-quality components, the mixer ensures reliable performance under continuous operation, minimizing downtime and maintenance costs.
Applications
| Industry | Application |
|---|---|
| Feed Production | Mixing powder, pellets, and additives |
| Medicine | Blending pharmaceutical powders and granules |
| Chemical Industry | Mixing chemical powders, flakes, and viscous materials |
| Food Processing | Combining dry and semi-dry ingredients |
Benefits Summary
| Benefit | Description |
|---|---|
| High Efficiency | 60-90s mixing time, uniformity coefficient <5% |
| Thorough Mixing | Dual-shaft paddle design for complete blending |
| Fast Discharge | Full-length double doors, minimal residue |
| Durable Construction | Reliable performance for continuous operation |
| Versatile Application | Handles powder, pellet, flake, block, and viscous materials |
