Heavy-Duty Cardboard Shredder – High-Speed Dual-Shaft Shredding Solution for Cartons, Paper & Packaging Waste

Contact
The SY Series is a high-speed dual-shaft shredder for cartons, cardboard, waste paper, plastic, sponge, fiberglass, and rags.

Blade thickness ranges from 15mm to 100mm, with optional pressure device for hollow materials to boost throughput.

Available in 9 models from SY600 to SY3000, with power from 15kW to 160kW and capacity up to 60 T/H.

Robust construction and dust-free collection system ensure reliable, eco-friendly operation in demanding environments.

Product Introduction

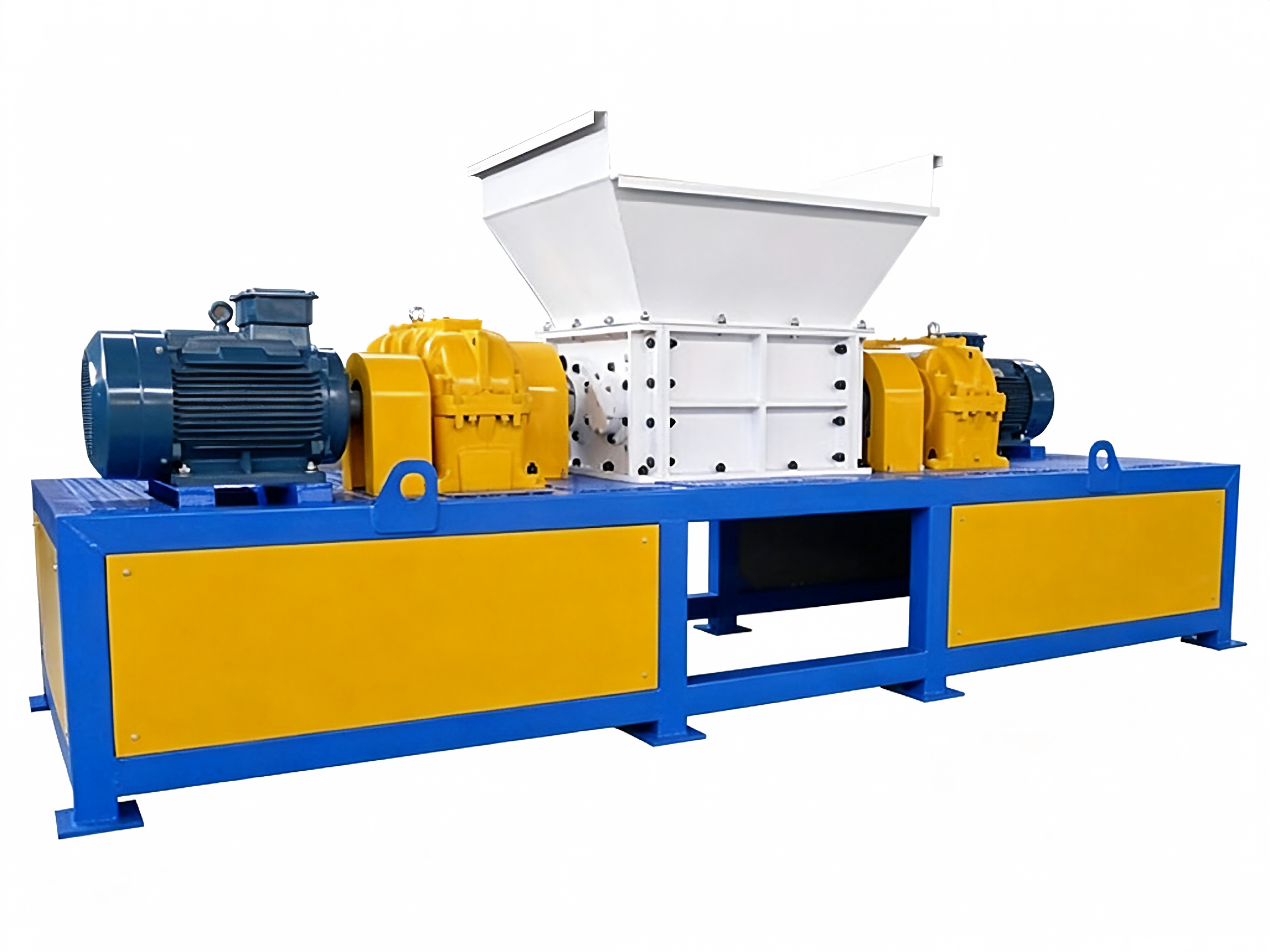

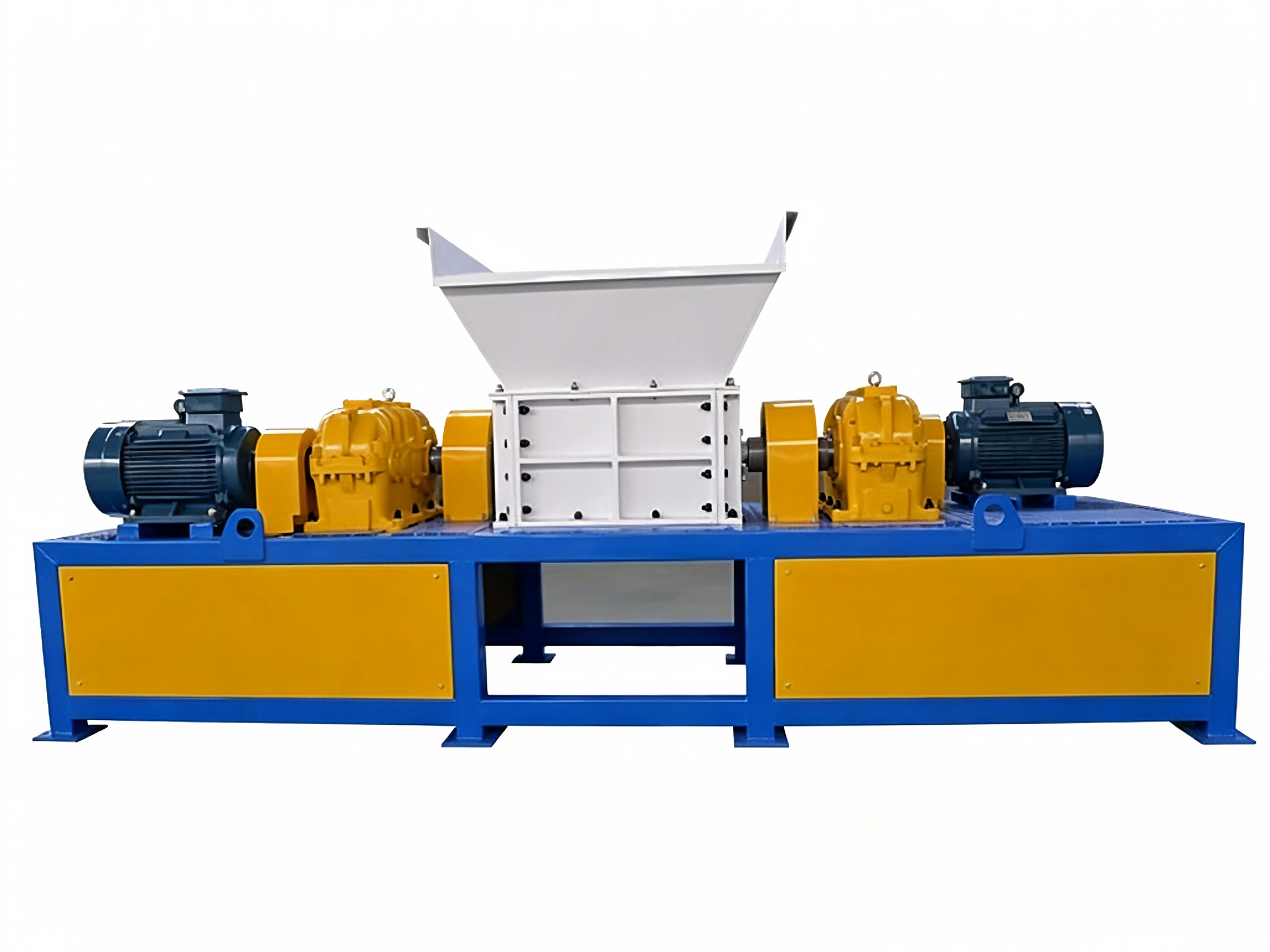

The SY Series Cardboard Shredding Machine is a high-speed, high-efficiency shredding solution specifically designed for processing all types of cartons, cardboard boxes, and corrugated packaging materials. Developed by our experienced R&D team, this machine features a novel and compact design that effectively handles materials with high tensile strength and a tendency to wrap around shafts – including waste paper, plastics, sponges, fiberglass, and rags.

With innovative design concepts and advanced processing technology, the SY Series can rapidly break and open waste materials of any shape while ensuring dust-free collection for environmental protection. The shredder blades are available in multiple thickness options (15mm, 20mm, 40mm, 50mm, 75mm, 100mm), allowing flexible selection based on desired output particle size. For hollow materials, an optional pressure device can be fitted to boost production efficiency.

Technical Characteristics

  • Versatile Application: Capable of shredding cartons, cardboard boxes, waste paper, plastic, sponge, fiberglass, and rags.

  • Flexible Blade Configuration: Blade thickness and quantity can be customized according to material properties; optional pressure device enhances throughput for hollow materials.

  • High-Speed Efficiency: Designed for rapid shredding and opening of waste materials with minimal maintenance requirements.

  • Dust-Free Operation: Unique collection system ensures environmental protection without dust emission.

  • Robust Construction: Dual main shaft design with heavy-duty reducers ensures reliable performance under continuous operation.

Performance Parameters

Model Main Shaft (pcs) Blade Size (mm) Blades (pcs) Reducer (sets) Motor Power (kW) Shaft Speed (r/min) Dimensions (mm)
SY600 2 Φ250×10 48 400×2 15×2 18-25 1450×870×2200
  2 Φ250×20 24 400×2 15×2 18-25 1450×870×2200
SY800 2 Φ250×20 32 400×2 30×2 18-25 2150×870×2200
  2 Φ250×30 18 650×2 30×2 18-25 3400×1250×2200
SY1000 2 Φ350×30 28 650×2 37×2 18-25 3400×1250×2200
  2 Φ350×40 20 750×2 37×2 18-25 4150×1250×2200
SY1200 2 Φ350×30 38 650×2 55×2 18-25 4150×1250×2200
  2 Φ350×40 28 750×2 55×2 18-25 4150×1250×2200
SY1500 2 Φ400×40 36 750×2 75×2 18-25 4150×1250×2200
  2 Φ400×50 28 850×2 75×2 18-25 4150×1250×2200
SY2000 2 Φ530×50 38 850×2 90×2 18-25 5250×1780×2200
  2 Φ600×60 32 850×2 90×2 18-25 5250×1780×2200
SY2500 2 Φ600×60 60 1000×2 110×2 18-25 7500×3200×3800
  2 Φ600×75 50 1000×2 110×2 18-25 7500×3200×3800
SY3000 2 Φ600×75 56 1200×2 132×2 18-25 8600×3500×4000
  2 Φ600×100 44 1200×2 132×2 18-25 8600×3500×4000

Application

  • Carton and cardboard box recycling

  • Waste paper processing

  • Plastic material shredding

  • Sponge and foam reduction

  • Fiberglass and rag disposal

  • Packaging waste treatment

FAQ

Q1: What materials can the SY Series shred?
A1: The SY Series can process a wide range of materials including all types of cartons, cardboard boxes, waste paper, plastic, sponge, fiberglass, and rags. It is specifically designed for materials with high tensile strength and easy-winding properties.

Q2: How do I choose the right blade thickness?
A2: Blade thickness determines the output particle size. Options include 15mm, 20mm, 40mm, 50mm, 75mm, and 100mm. Thinner blades produce finer particles; thicker blades are suitable for coarse shredding and higher throughput. We recommend consulting our technical team based on your specific material and desired output.

Q3: What is the purpose of the pressure device?
A3: The optional pressure device is used when shredding hollow materials (such as empty cartons or plastic bottles). It compresses the material against the blade rotor, increasing feeding efficiency and overall production capacity.

Q4: How does the machine ensure dust-free operation?
A4: The SY Series incorporates a unique collection system that captures and contains dust generated during the shredding process, ensuring a clean working environment that meets environmental protection standards.

Q5: What is the shaft speed range?
A5: The main shaft operates at 18-25 r/min across all models, providing optimal torque and shredding efficiency for various material types.
