Biomass Wood Pellet Mill – Efficient, Durable, and Customizable Fuel Pelletizing Solution

Product Introduction (Long Version)

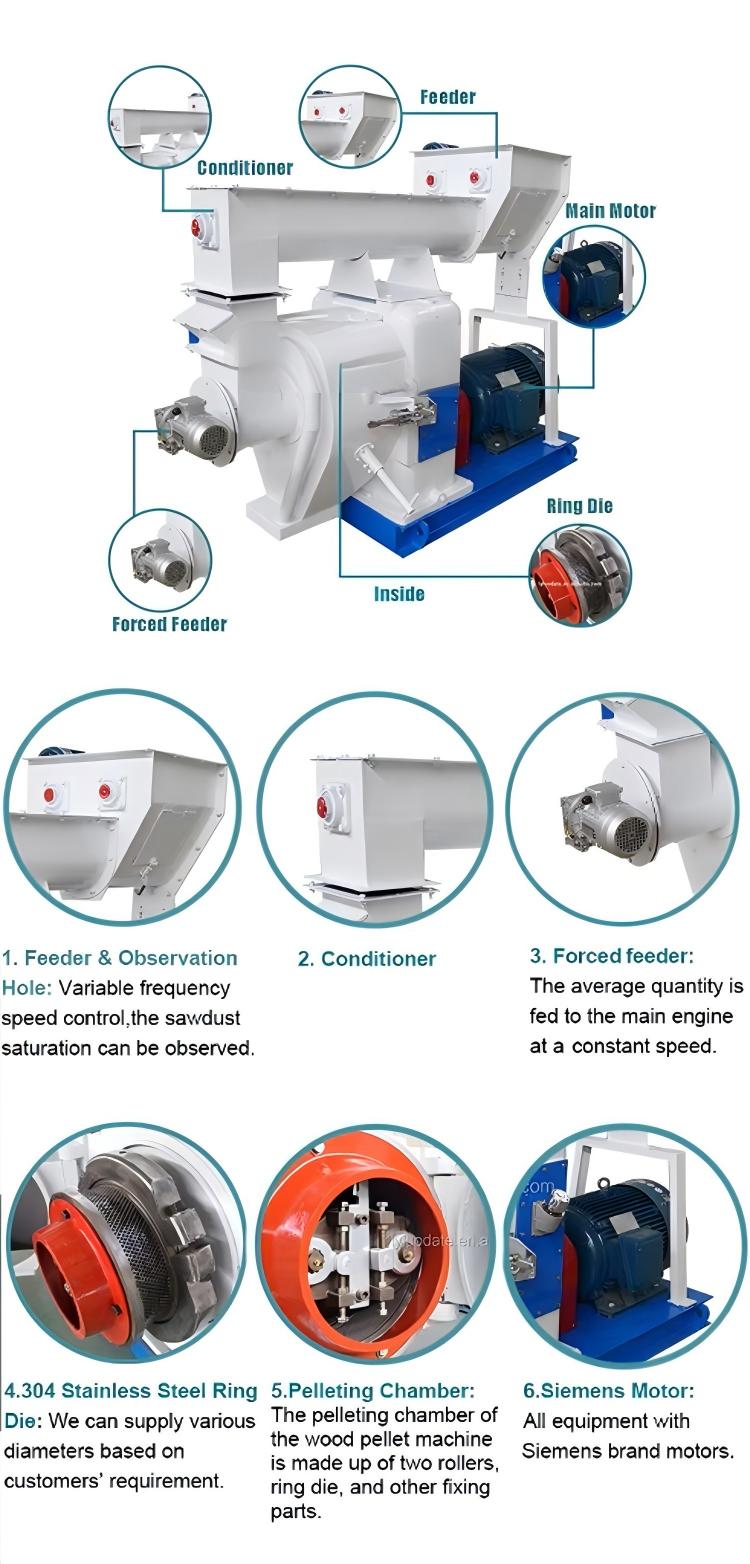

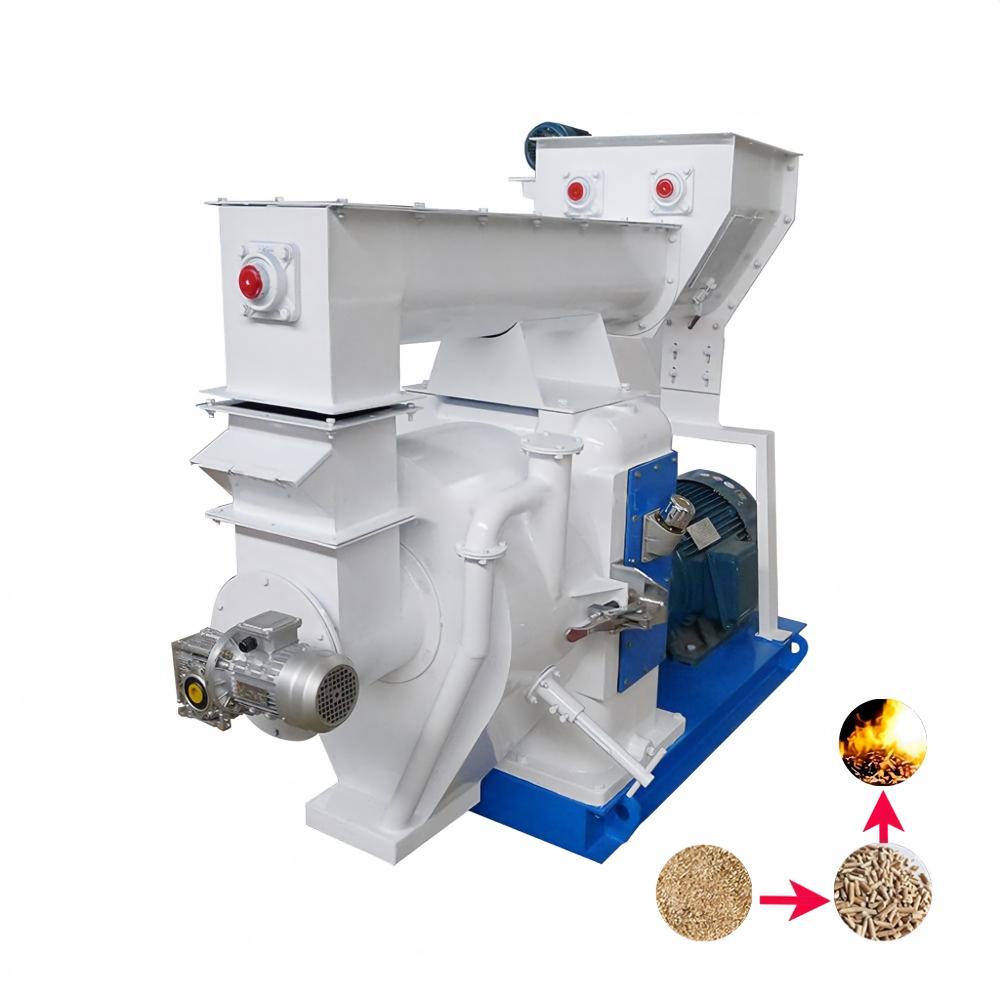

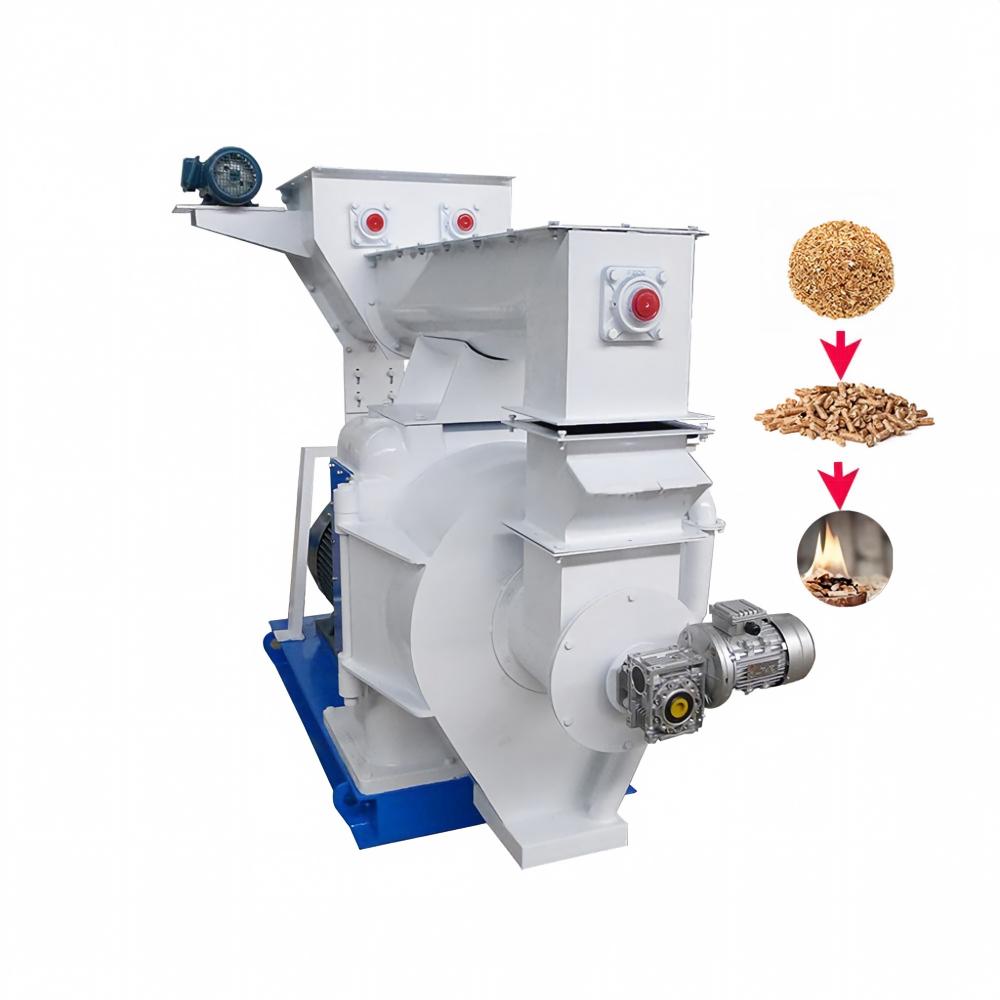

The SY series biomass wood pellet mill (models SYLH250–SYLH508) is engineered to efficiently compress wood dust, wood chips, and other biomass raw materials into high-density fuel pellets. Powered by Siemens motors and equipped with variable-frequency speed control on the feeder, a forced feeding device, and a 304 stainless steel ring die, the system ensures uniform material intake and stable pelletizing performance. Adjustable pellet diameter (6–12mm) and capacities ranging from 0.1 to 3 t/h make this series suitable for everything from small workshops to industrial production lines. The compact design, observation port for real‑time saturation monitoring, and durable twin‑roller ring‑die chamber guarantee reliable, long‑term operation—an ideal solution for biomass energy production.

Advantage

1. Efficient & Flexible Capacity
   Powered by Siemens motors with variable‑frequency and forced feeding, output ranges 0.1–3 t/h, pellet size 6–12mm adjustable—adapts to various biomass materials.

2. Durable 304 Stainless Ring Die
   Corrosion‑resistant and wear‑proof, the ring die can be customized to different diameters, extending service life and reducing maintenance costs.

3. Smart Feeding, Smooth Operation
   Observation hole for real‑time material saturation monitoring; forced feeder ensures constant, even material flow, preventing jamming and improving pellet quality.

4. Compact Footprint, Wide Application
   Smallest size 1420×1200×1400mm—ideal for sawmills, biomass energy stations, farms, and small‑to‑medium pellet production workshops.

Application

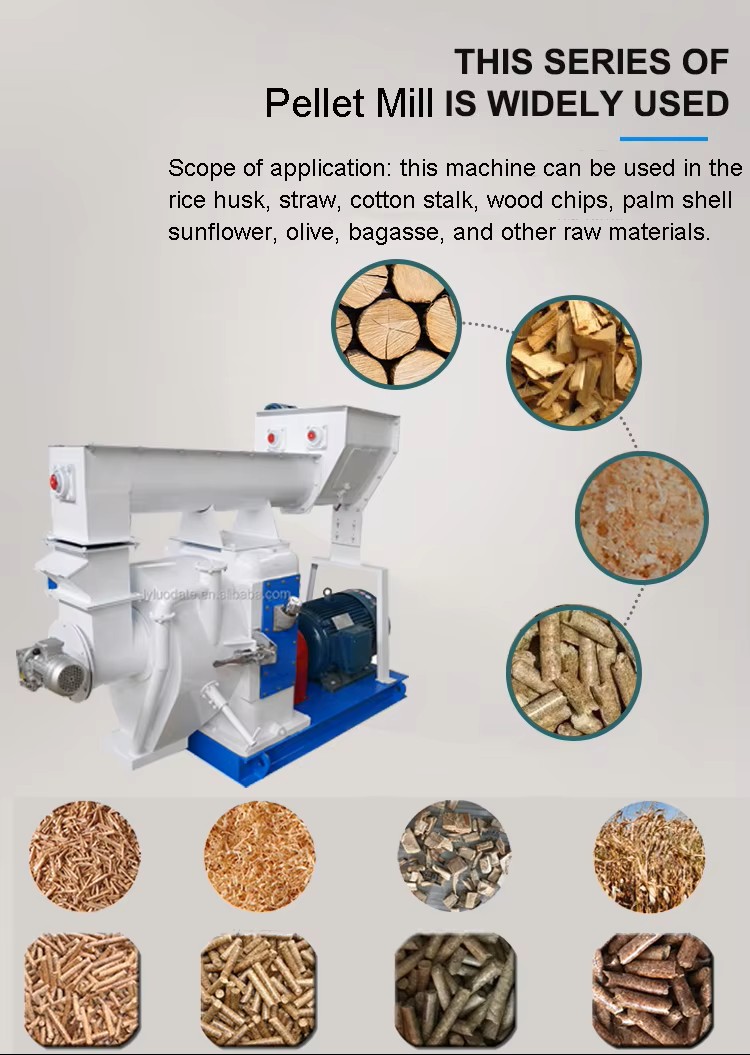

• Biomass Fuel Processing Plants – Convert sawdust, shavings, and wood chips into commercial‑grade combustion pellets for heating boilers or power stations.

• Wood Processing By‑product Recycling – Furniture and panel factories turn waste offcuts and wood flour into pellets, reducing disposal costs and creating additional revenue.

• Farm/Agricultural Residue Utilization – Process straw, rice husks, and other agricultural leftovers into clean fuel for on‑farm use or resale.

• Small‑Scale Pellet Production Workshops – Compact size and flexible output make it suitable for startups or individual entrepreneurs with limited space.

FAQ

Q1: What raw materials can this machine process?
A: It handles wood dust, wood chips, sawdust, shavings, straw, rice husks, and similar biomass with moisture content of 10–18%. Recommended raw material particle size ≤5mm.

Q2: Can the pellet diameter be adjusted?
A: Yes. By changing the 304 stainless steel ring die, you can produce pellets from 6mm to 12mm in diameter. Custom diameters are also available upon request.

Q3: What are the power and installation requirements?
A: Standard configuration is 380V/50Hz three‑phase power (customizable per local voltage). Install on a flat surface, and reserve at least 1 meter of clearance around the machine for operation and maintenance.

Q4: How to prevent clogging or material jamming?
A: The variable‑frequency feeder and forced feeding device ensure uniform material flow. Regular cleaning of the ring die and rollers, plus maintaining consistent moisture content, further prevents blockages.

Q5: What about warranty and after‑sales support?
A: We offer a 12‑month warranty on the main machine (excluding wear parts like ring die and rollers). Remote technical support, video guidance, and on‑site engineer dispatch are available as needed.
