500-2000 KG/PH Small Scale Poultry Pellet Feed Production Line / Small Feed Mill Plant / Feed Processing Machine
poultry, livestock, ruminants & aquatic feed.
gear transmission, stainless steel feeder. 2-12mm pellets. Customizable.

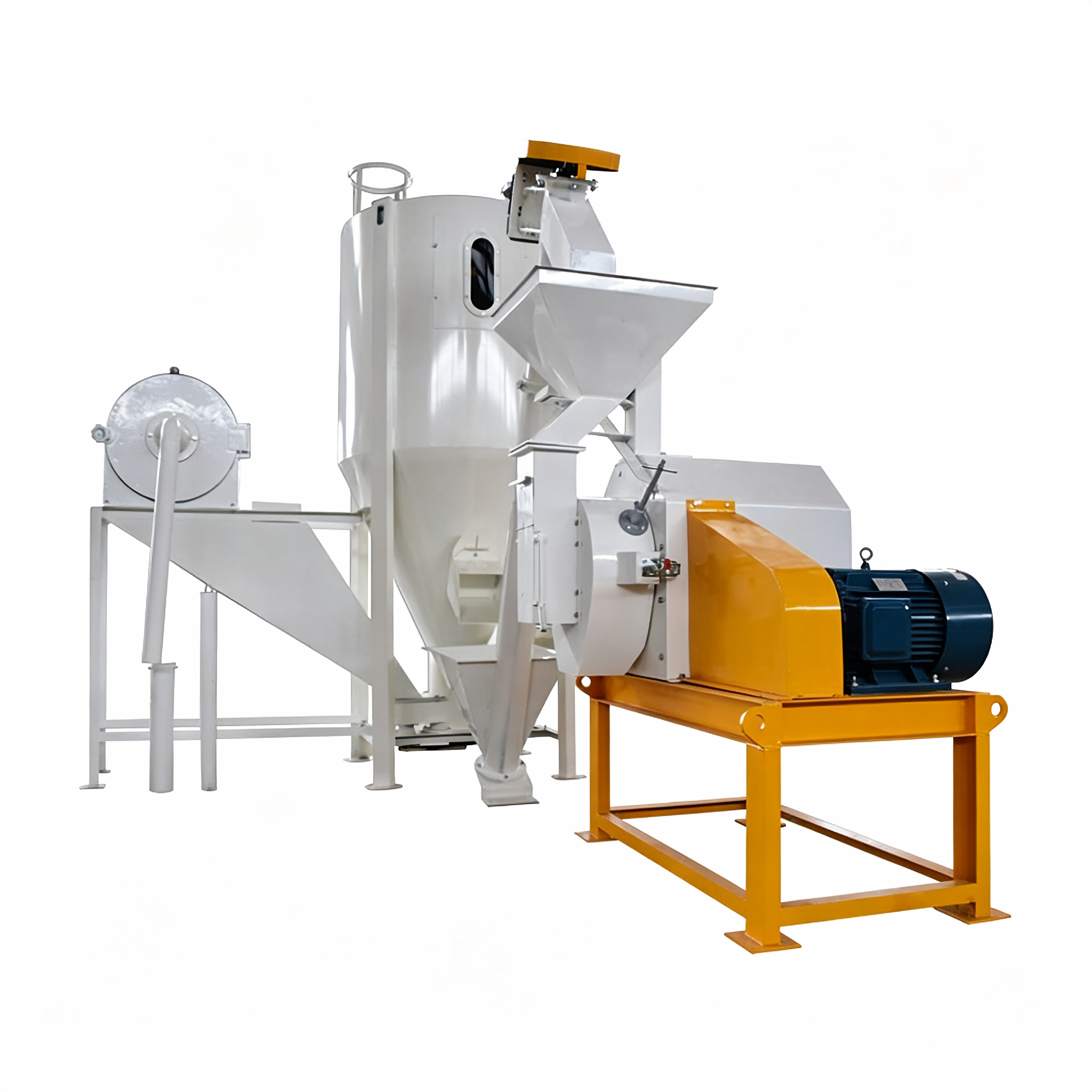

500-2000 KG/H Animal Feed Pellet Processing Equipment – Compact Feed Production Solution
Product Overview
The 500-2000 KG/H Animal Feed Pellet Processing Equipment is a compact and efficient feed production line designed for small to medium-scale feed manufacturing. With a capacity range of 500 to 2000 kg per hour and pellet size from 2 to 12 mm, this equipment is ideal for poultry, livestock, ruminants, and aquatic feed pellet production.
The machine and equipment of the production line can be customized according to the different needs of customers, making it a flexible solution for small farms, feed processing workshops, and start-up feed manufacturing businesses. Whether you are producing chicken, pig, cattle, sheep, or fish feed, this animal pellet feed production line delivers consistent quality, high output, and low energy consumption.
Product Application
| Parameter | Specification |
|---|---|
| Type | Animal Pellet Feed Production Line |
| Capacity | 500 – 2000 KG/H |
| Pellet Size | 2 – 12 mm |
| Application | Poultry, livestock, ruminants and aquatic pellet feed production |
| Customization | Available according to customer requirements |
Technical Parameters
Technical Parameters| Model | Main Power (kW) | Capacity (t/h) | Dimension (mm) |
|---|---|---|---|
| SYLH250 | 22 | 1–2 | 2000×1400×1550 |
| SYLH320 | 37/45 | 2–4 | 2300×1700×2000 |
| SYLH350 | 55 | 3–6 | 2600×1000×2050 |
| SYLH400 | 75/90 | 4–11 | 2880×1140×2220 |
| SYLH420 | 90/110 | 5–12 | 3000×1300×2350 |
Product Features
| Feature | Description |
|---|---|
| Gear Transmission | Adopting gear transmission, the whole machine has stable transmission, high efficiency and large output, ensuring reliable performance and consistent pellet quality |
| Stainless Steel Feeder | All stainless steel feeder with electromagnetic speed control, providing precise feeding control and excellent corrosion resistance |
| Versatile Conditioner Options | Single-layer and multi-layer, standard and enlarged all-stainless steel conditioners are available for selection, allowing customization based on specific steam conditioning requirements |
| High Output, Low Energy Consumption | Designed for maximum efficiency with minimal energy usage, reducing operating costs and improving profitability |
| Easy Operation & Maintenance | User-friendly design with simple controls, easy access to wear parts, and straightforward maintenance procedures |
| Wide Application | Widely used for pelleting livestock and poultry products, including chickens, pigs, cattle, sheep, fish, and shrimp |
Related Equipment

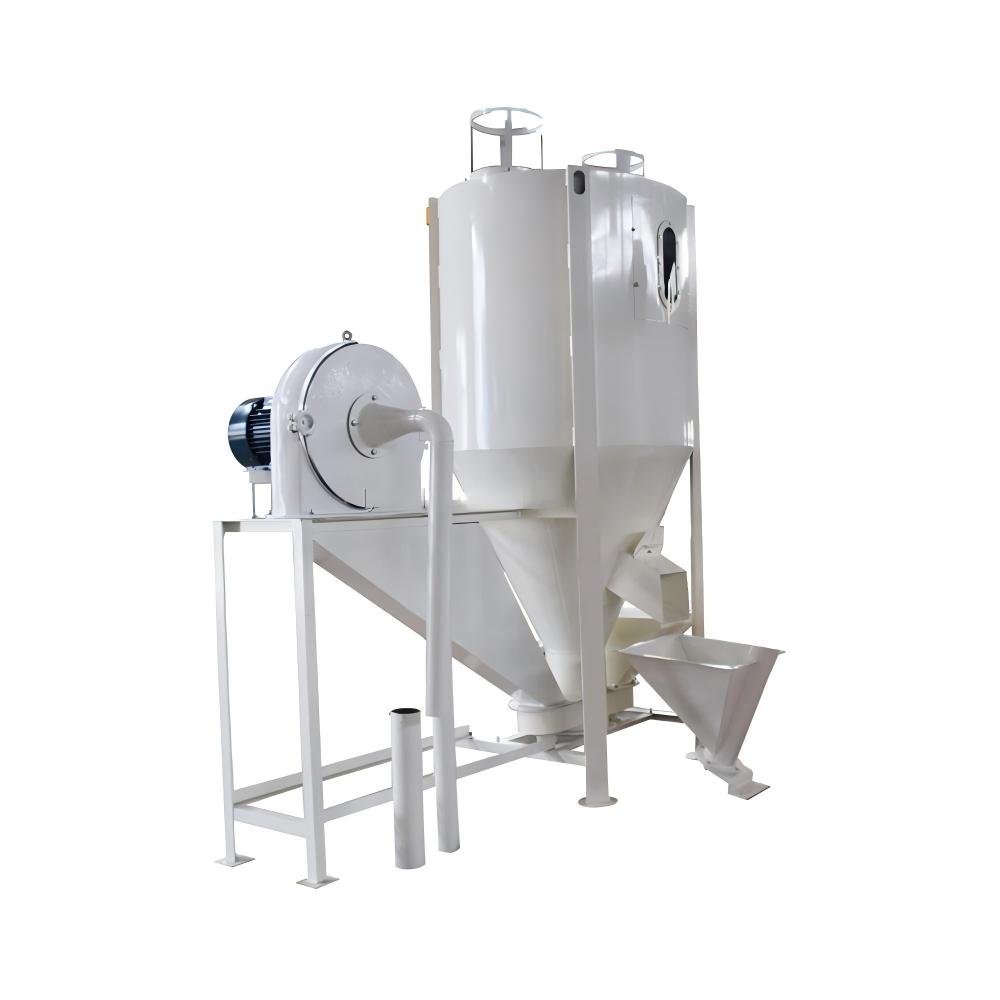

This product line involves grinder/hammer mill, mixer, feed pellet making machine, cooler and other auxiliary machines. The complete feed production line can be configured with:
| Equipment | Function |
|---|---|
| Hammer Mill / Grinder | Crushing raw materials to required particle size |
| Mixer | Evenly mixing various ingredients and additives |
| Feed Pellet Making Machine | Extruding mixed mash into cylindrical pellets |
| Cooler | Cooling and dehydrating hot pellets for storage |
| Screener | Removing fines and oversized particles |
| Packaging System | Automatic weighing, bagging and sealing |
Advantages at a Glance
| Feature | Core Customer Benefit |
|---|---|
| Compact & Efficient | Small footprint, ideal for limited production spaces |
| Customizable | Equipment can be tailored to customer requirements |
| 500-2000 KG/H Capacity | Perfect for small to medium-scale production |
| Gear Transmission | Stable operation, high efficiency, large output |
| Stainless Steel Feeder | Corrosion-resistant with electromagnetic speed control |
| Multiple Conditioner Options | Single/multi-layer, standard/enlarged available |
| Wide Application | Poultry, livestock, ruminants and aquatic feed |
| Complete System | Grinding, mixing, pelletizing, cooling and packaging |
Application
| Application | Description |
|---|---|
| Small to Medium Farms | Produce custom feed for poultry, livestock, and aquatic species on-site |
| Feed Processing Workshops | Small-scale commercial feed production for local supply |
| Start-up Feed Manufacturing | Entry-level feed production with flexible capacity and customization |
| Agricultural Cooperatives | Shared feed processing for member farms to reduce procurement costs |
| Ruminant Feed Production | Specialized feed for cattle, sheep, and goats with fiber structure |
| Aquatic Feed Production | Sinking or floating pellets for fish and shrimp farming |
FAQ
Q1: What is the capacity range of this equipment?
A: The capacity ranges from 500 to 2000 kg per hour, suitable for small to medium-scale feed production.
Q2: What pellet sizes can be produced?
A: Pellet size is adjustable from 2mm to 12mm, accommodating poultry, livestock, ruminants, and aquatic species.
Q3: What animals is this feed line suitable for?
A: It produces feed for chickens, pigs, cattle, sheep, fish, shrimp, and other poultry and livestock.
Q4: Can the equipment be customized?
A: Yes. The production line can be customized according to customer requirements, including capacity, configuration, and layout.
Q5: What type of transmission does the pellet mill use?
A: The pellet mill adopts gear transmission for stable operation, high efficiency, and large output.
Q6: Is the feeder corrosion-resistant?
A: Yes. The feeder is made of stainless steel with electromagnetic speed control for precise feeding and excellent durability.
Q7: What conditioner options are available?
A: Single-layer and multi-layer, standard and enlarged all-stainless steel conditioners are available for selection.
Q8: What machines are included in the complete production line?
A: The line includes hammer mill/grinder, mixer, pellet making machine, cooler, screener, and packaging system. Auxiliary equipment can also be added.
Q9: Is this equipment suitable for limited production spaces?
A: Yes. The compact design has a small footprint, making it ideal for workshops and farms with limited space.
Q10: What is the warranty period?
A: The equipment comes with a standard 1-year warranty. Extended options are available upon request.
