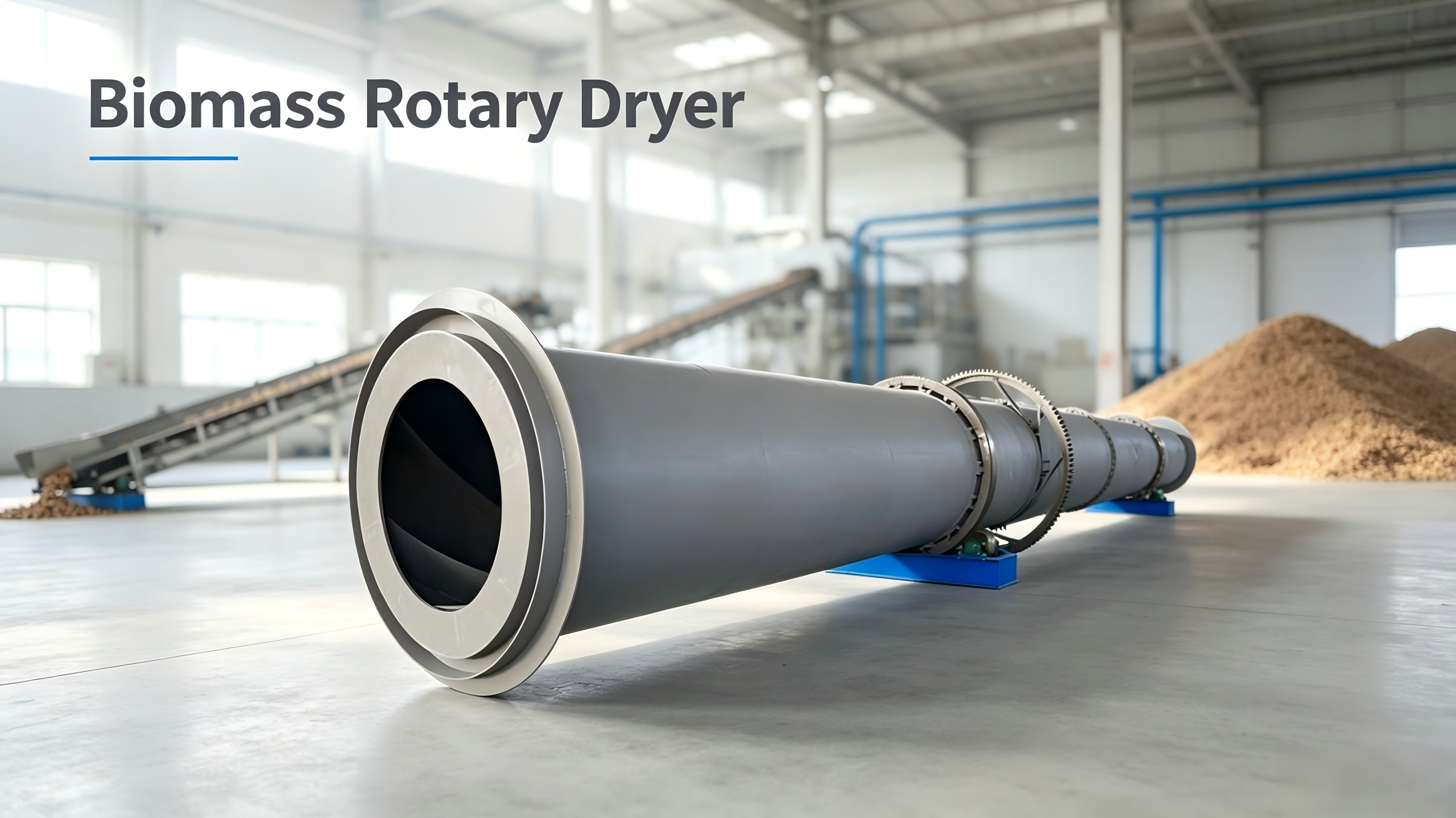

Biomass Rotary Drum Dryer – Sawdust, Wood Chip & Straw Drying
Power(kw): 7.5-30
Capacity(t/h): 1-10
Appication: Using for sawdust briquetting, wood pellet fuel, straw briquetting fuel, charcoal machinery, agriculture and animal husbandry engineering and other industries.

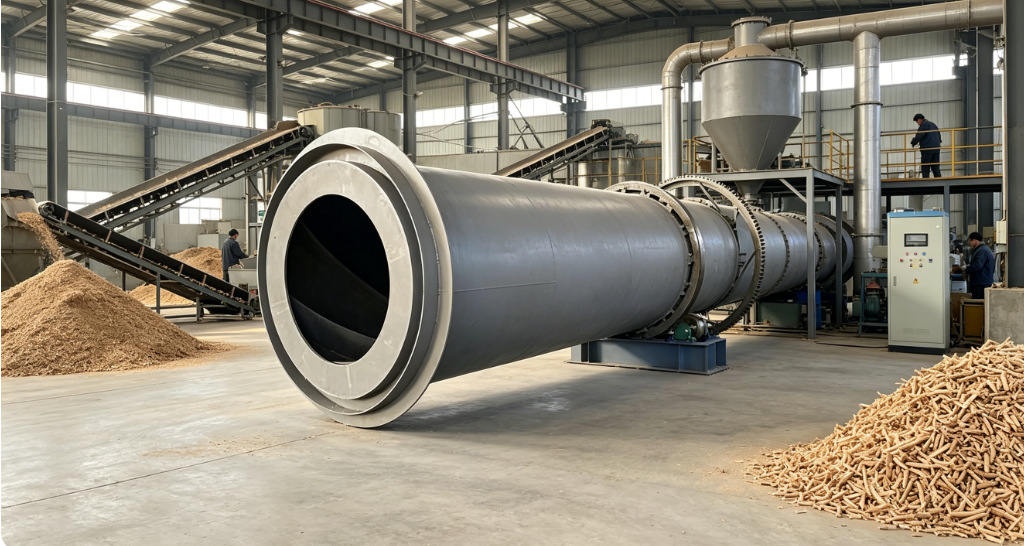

Rotary Drum Dryer – Industrial Drying Equipment
The Rotary Drum Dryer is a high-efficiency industrial drying equipment designed for processing sawdust, wood chips, straw, and other biomass materials. With a power range of 7.5–30 kW and capacity from 1 to 10 tons per hour, this dryer is widely used in sawdust briquetting, wood pellet fuel production, straw briquetting fuel, charcoal machinery, agriculture and animal husbandry engineering, and other industries. The rotary drum dryer offers high thermal efficiency, large processing capacity, and simple operation, making it an essential component in biomass fuel preparation lines and material processing facilities.
Product Features
-
High Drying Intensity – The material is highly dispersed in the air, and all particle surface areas are exposed for effective drying. This maximizes the contact between material and hot air, resulting in rapid and uniform moisture removal.
-
Short Drying Time – Due to the efficient heat and mass transfer design, the drying time is significantly reduced compared to conventional dryers, improving overall production efficiency.
-
Simple Structure – The dryer features a straightforward design, making it easy to install, operate, and maintain. The robust construction ensures long service life with minimal upkeep.
-
Large Processing Capacity & High Thermal Efficiency – The dryer handles large volumes of material with excellent thermal efficiency. When drying unbound water, the thermal efficiency can reach up to 60%, significantly reducing energy consumption and operating costs.
-
Versatile Applications – Widely used in sawdust briquetting, wood pellet fuel production, straw briquetting fuel, charcoal machinery, agriculture and animal husbandry engineering, and other biomass processing industries.
Technical Parameters
| Model | Barrel Diameter (mm) | Barrel Length (mm) | Slope (%) | Speed (r/min) | Power (kW) | Capacity (t/h) |
|---|---|---|---|---|---|---|
| Φ1.0×(10-12) | 1000 | 10000–12000 | 3–5 | 6.73 | 7.5 | 1–5 |
| Φ1.2×(12-18) | 1200 | 12000–18000 | 3–5 | 5.8 | 15 | 2–6 |
| Φ1.5×(12-20) | 1500 | 12000–20000 | 3–5 | 4.8 | 18.5 | 3–8 |
| Φ1.8×(12-20) | 1800 | 12000–20000 | 3–5 | 3.2 | 30 | 5–10 |

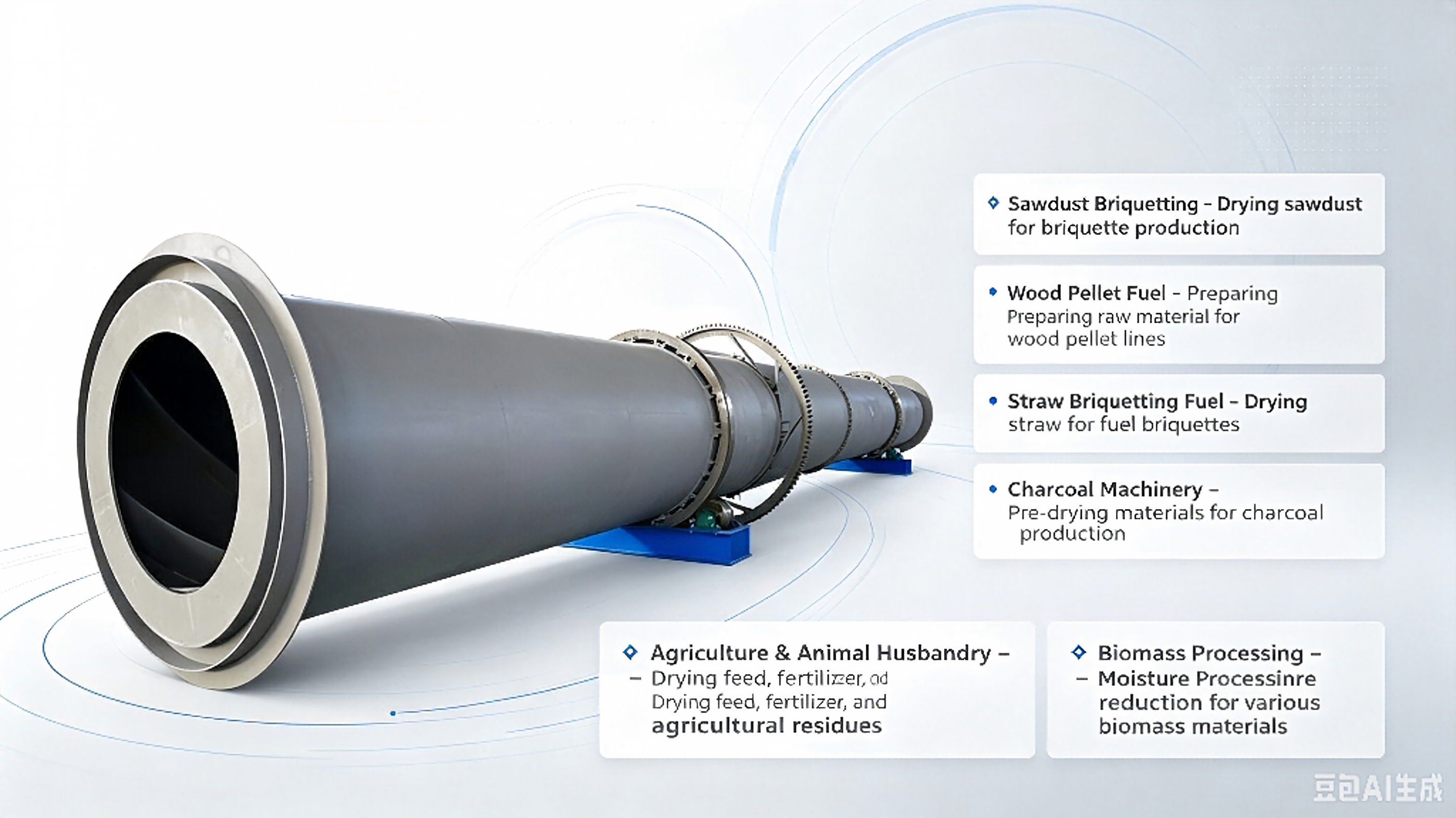

Applications
This rotary drum dryer is widely used in:
-
Sawdust Briquetting – Drying sawdust for briquette production
-
Wood Pellet Fuel – Preparing raw material for wood pellet lines
-
Straw Briquetting Fuel – Drying straw for fuel briquettes
-
Charcoal Machinery – Pre-drying materials for charcoal production
-
Agriculture & Animal Husbandry – Drying feed, fertilizer, and agricultural residues
-
Biomass Processing – Moisture reduction for various biomass materials
Advantages
✅ High Drying Intensity – Material highly dispersed for maximum surface area exposure
✅ Short Drying Time – Fast moisture removal for increased production efficiency
✅ Simple Structure – Easy installation, operation, and maintenance
✅ Large Processing Capacity – Handles 1–10 t/h across different models
✅ High Thermal Efficiency – Up to 60% thermal efficiency when drying unbound water
✅ Versatile Applications – Suitable for sawdust, wood chips, straw, and more
✅ Customizable – Can be customized according to client requirements
Customization
This rotary drum dryer can be customized according to clients' specific requirements, including:
-
Barrel diameter and length
-
Drying capacity
-
Heating source (hot air, steam, flue gas, etc.)
-
Material of construction
-
Auxiliary equipment configuration
FAQ – Rotary Drum Dryer
1. What materials can this dryer handle?
It is suitable for sawdust, wood chips, straw, rice husks, and other biomass materials, as well as feed, fertilizer, and agricultural residues.
2. What is the processing capacity and power range?
The dryer offers 4 models with capacities ranging from 1 to 10 tons per hour and power consumption from 7.5 to 30 kW, allowing you to choose based on your production needs.
3. How efficient is the drying performance?
Materials are highly dispersed inside the drum for maximum contact with hot air, ensuring rapid and uniform drying. When drying unbound water, thermal efficiency can reach up to 60%, significantly reducing energy costs.
4. Is it easy to install and operate?
Yes. The dryer features a simple and robust structure, making installation, operation, and maintenance straightforward. It requires minimal upkeep and offers long service life.
5. Can it be customized?
Yes. As shown in the customization section above, we offer flexible customization options including barrel size, capacity, heating source, construction material, and auxiliary equipment to meet your specific requirements.
