5-8T/H Floating Fish Feed Pellet Machine for Tilapia Salmon Carp Fish Feed
Capacity 2–28 t/h, power 37–315 kW.
Delivers higher efficiency and lower maintenance than belt systems. Variable-frequency feeder ensures uniform flow, stainless steel parts resist corrosion.
Interchangeable dies produce 2–12 mm pellets for poultry, livestock, ruminants and aquatic species.
2–4 roller options. Siemens motor.

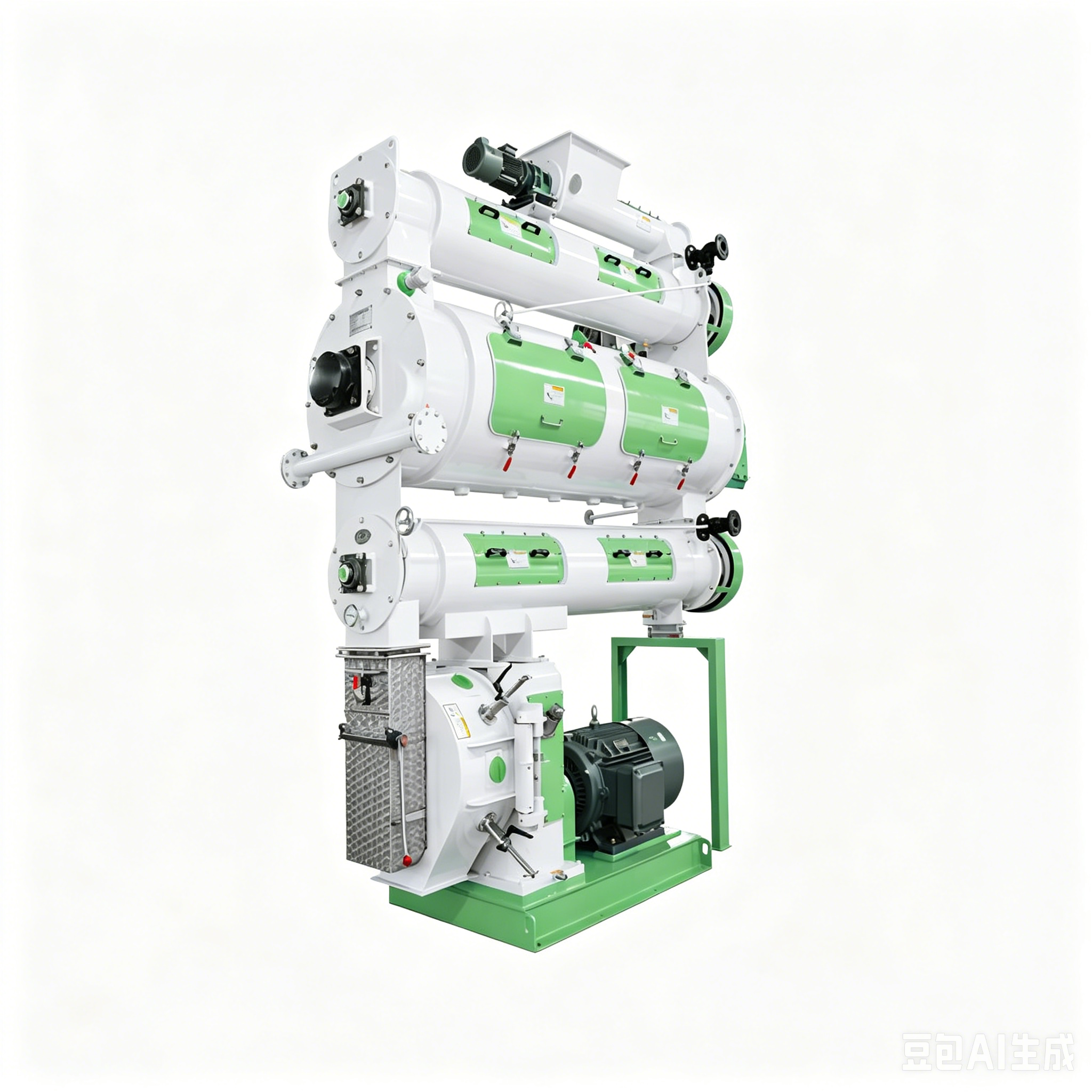

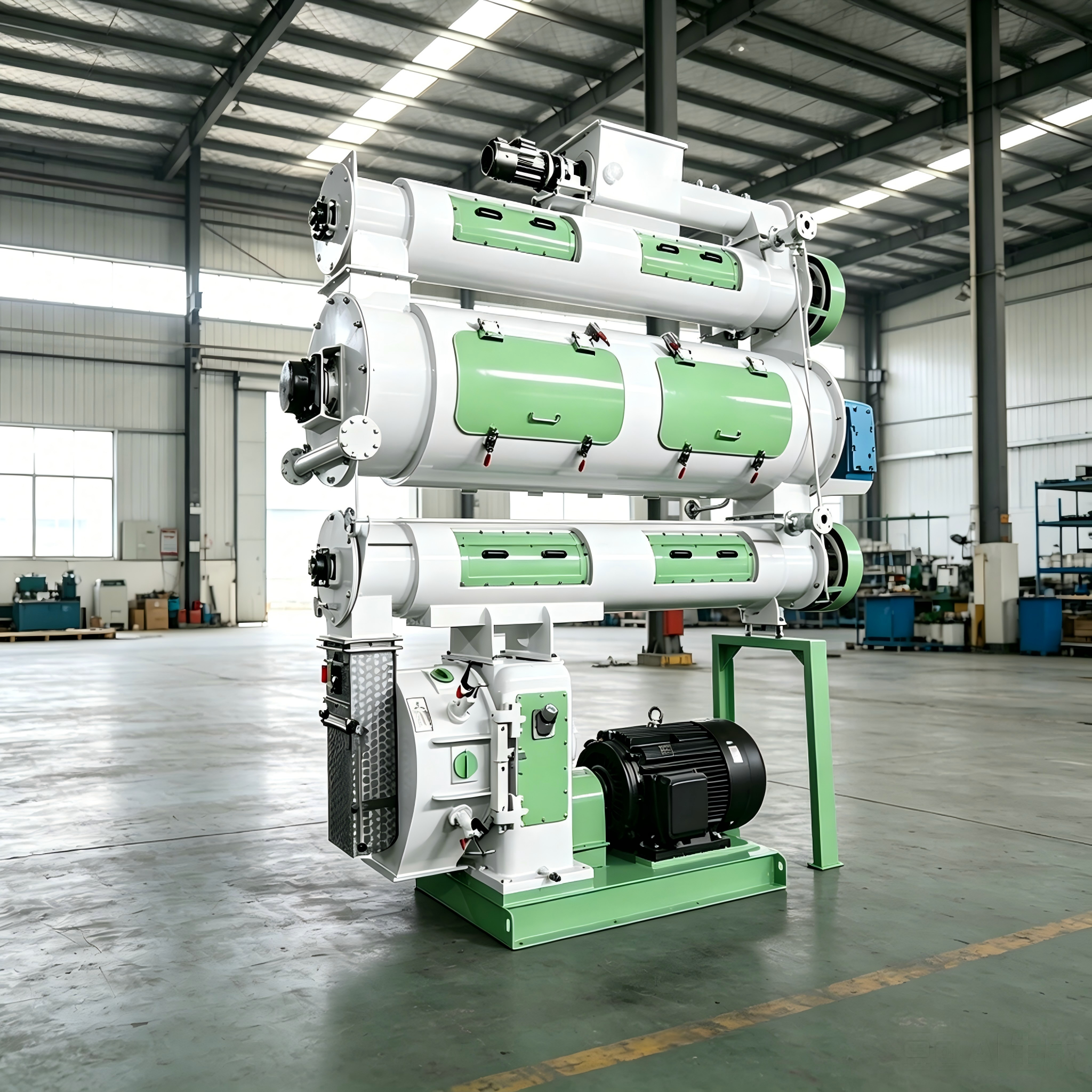

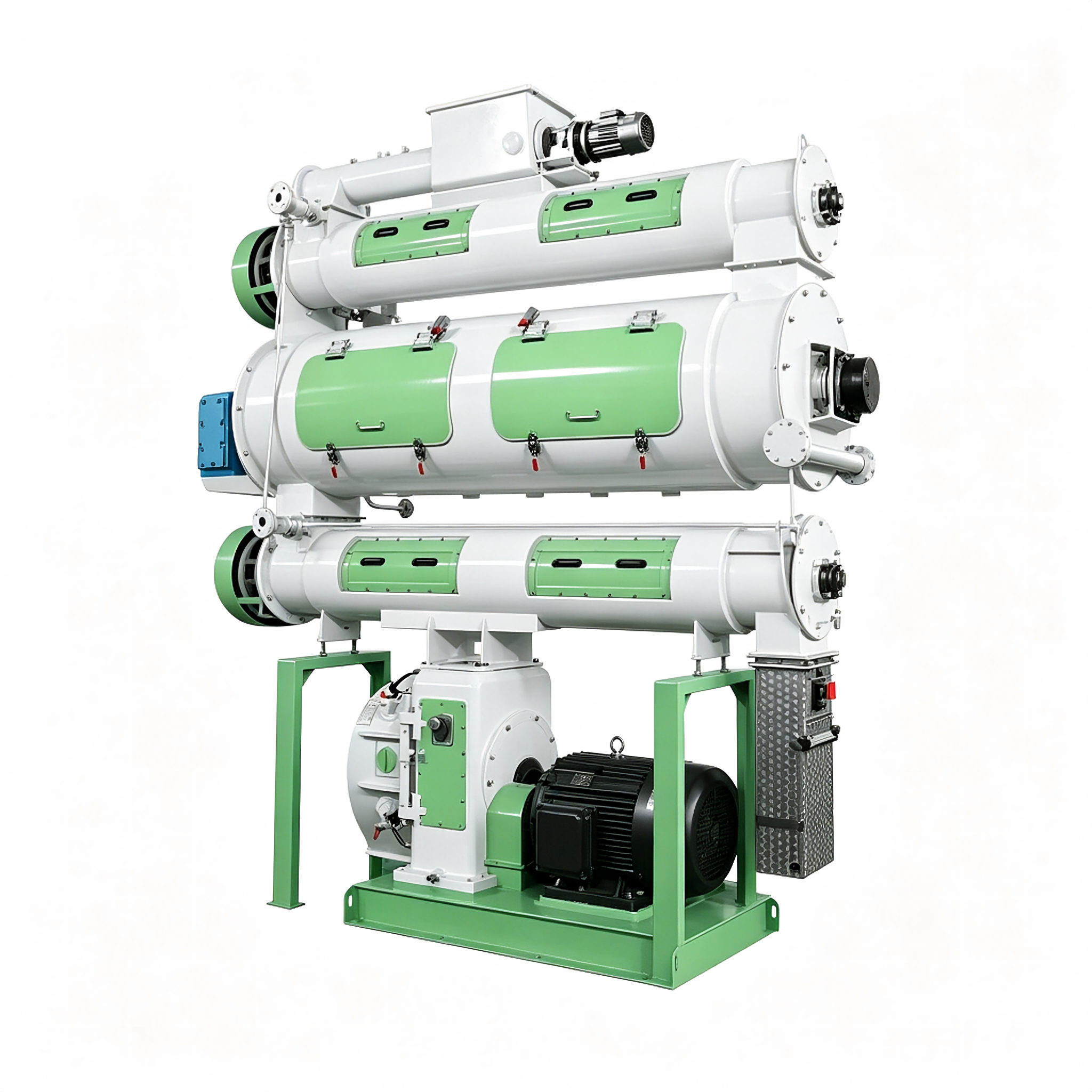

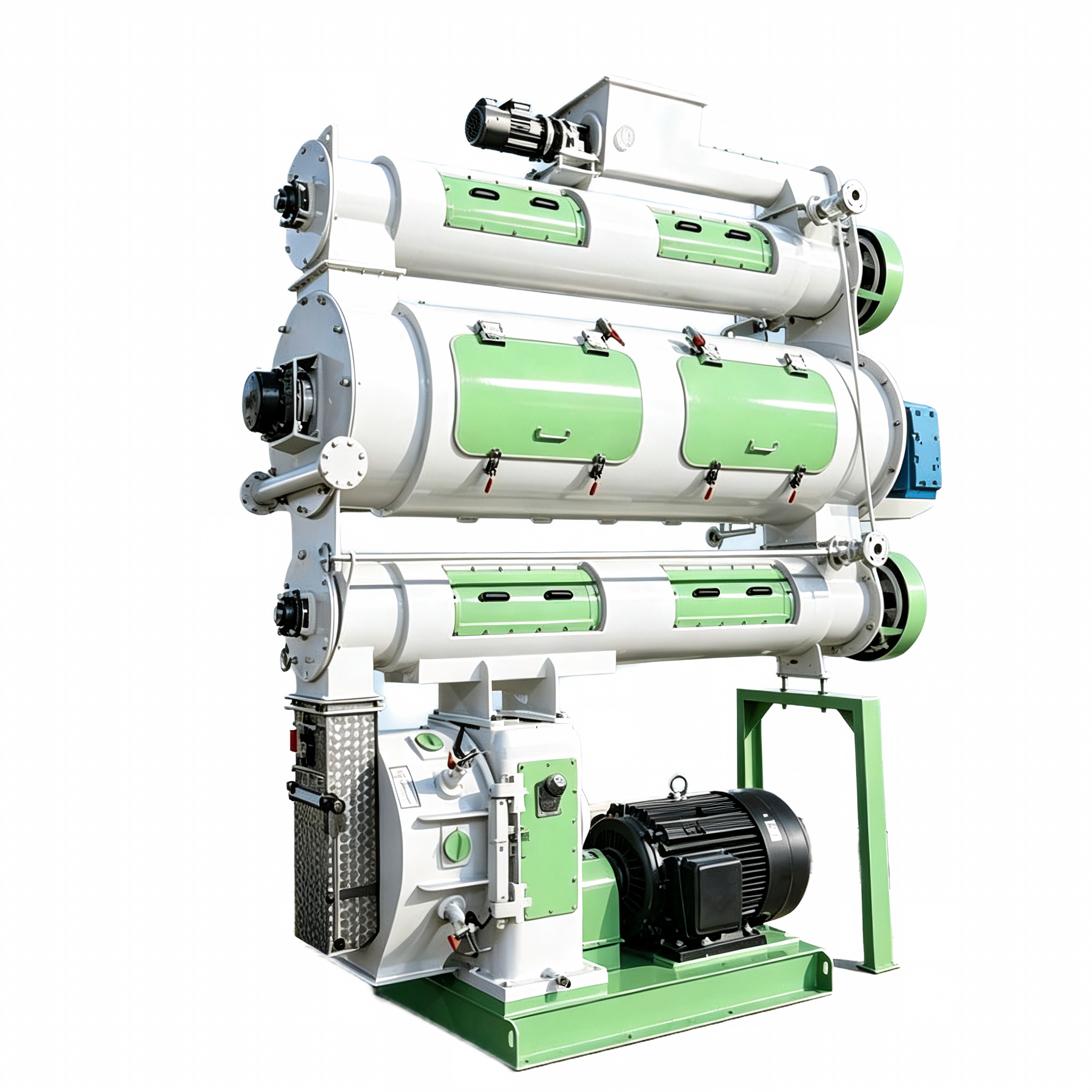

SYLH Series Ring Die Feed Pellet Mill – Product Introduction
1. Equipment Overview
The SYLH series ring die feed pellet mill is an industrial-grade pelleting solution engineered for high-volume commercial feed production. With main power ranging from 37 kW to 315 kW and capacities from 2 to 28 t/h, it is designed for large-scale feed mills and farming operations requiring reliable, continuous output with minimal downtime.
Built around a precision gear-driven transmission system, the SYLH series delivers superior efficiency and stability compared to conventional belt-driven designs. It processes a wide range of raw materials into dense, uniform pellets suitable for poultry, livestock, ruminants, and aquatic species at all growth stages.
2. Key Features
| Feature | Benefit |
|---|---|
| Gear-driven transmission | Higher efficiency, lower maintenance, stable under heavy industrial loads |
| Variable-frequency feeder | Adjustable feed rate ensures uniform material flow and prevents clogging |
| Stainless steel conditioner | Corrosion-resistant, prevents contamination, extends service life |
| Interchangeable ring dies | Pellet sizes 2–12 mm, customizable to different animal feeding requirements |
| Forged stainless steel blades | Hard, wear-resistant, corrosion-resistant; tilted design for better mixing |
| Siemens main motor | Smooth operation, stable output, reduced production loss |
| Safety door interlock | Automatic power-off when chamber door is opened for operator protection |
| Multi-roller options | 2–4 rollers to match different material properties and formulations |
Ring die sizes from 2 mm to 12 mm are available to produce pellets for:
| Application | Examples |
|---|---|
| Poultry | Broiler, layer, breeder feed |
| Livestock | Pig, cattle, sheep, goat feed |
| Ruminants | Dairy, beef cattle, calf feed |
| Aquatic | Fish, shrimp, crab feed – floating or sinking pellets |
3. Technical Parameters
Note: Actual capacity varies with raw material properties, moisture content, and formulation.
| Model | Power (kW) |
Feeder Power (kW) |
Conditioner Power (kW) |
Ring Die Inner Diameter (mm) |
Pellet Size (mm) | Capacity (t/h) |
| SYLH 320 | 37 / 45 | 1.1 | 2.2 | 320 | 2 – 12 | 2 – 4 |
| SYLH 350 | 55 | 1.5 | 3 | 350 | 2 – 12 | 3 – 6 |
| SYLH 400 | 75 / 90 | 1.5 | 5.5 | 400 | 2 – 12 | 4 – 11 |
| SYLH 420 | 90 / 110 | 1.5 | 5.5 | 420 | 2 – 12 | 5 – 12 |
| SYLH 508 | 132 / 160 | 2.2 | 7.5 | 508 | 2 – 12 | 6 – 20 |
| SYLH 678 | 185 / 200 | 2.2 | 11 | 678 | 2 – 12 | 8 – 25 |
| SYLH 768 | 280 / 315 | 2.2 | 15 | 768 | 2 – 12 | 15 – 28 |
4. Raw Material & Application Range
The SYLH series processes a diverse range of feed ingredients:
| Category | Materials |
|---|---|
| Grains | Corn, wheat, barley, sorghum |
| Oilseed Meals | Soybean meal, rapeseed meal, cottonseed meal |
| Fibrous Materials | Straw, hay, grass meal |
| Animal By-products | Meat & bone meal, feather meal, fish meal |
| Other | Aquatic plants, mixed organic waste, milk powder, whey powder |
It supports multiple formulations and delivers specialized pellet feed for poultry (chickens, ducks, geese), livestock (pigs, cattle, sheep), ruminants, and aquatic animals (fish, shrimp, crabs).
