5 Ton/Hour Animal Feed Production Line – Poultry, Chicken & Cattle Feed Processing Plant

Animal Feed Production Line – Project Overview

1. Product Overview

This animal feed production line is a complete, fully integrated system designed to produce a wide variety of animal pellet feeds, as well as animal powder feeds. With a production capacity of 5 tons per hour and utilizing corn, soybean, wheat and other common grains as raw materials, this line is an ideal solution for farms, livestock operations, and entrepreneurs seeking to enter the animal feed manufacturing industry.

The finished feed pellets can be used for on-farm consumption or marketed commercially, offering both operational self-sufficiency and revenue-generation potential.

2. Production Process Flow

Process 1: Raw Material Receiving & Grinding

Raw Materials Receiving → Pulse Filter → Raw Materials Precleaner → Storage Bin → Grinding Machine → Pulse Filter

This stage ensures incoming raw materials are cleaned of impurities and ground to the optimal particle size for subsequent mixing and pelletizing.

Process 2: Mixing

Bucket Elevator → Storage Bin → Mixer

Ground ingredients are precisely weighed and thoroughly blended in the mixer to achieve a homogeneous formulation, ensuring consistent nutritional content across all finished pellets.

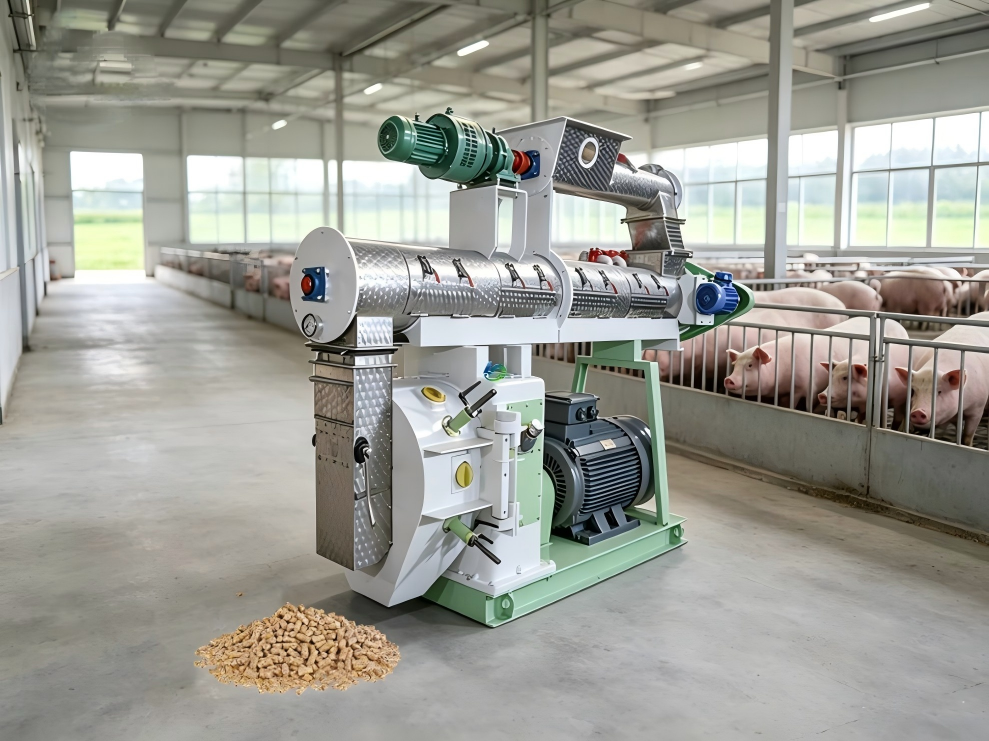

Process 3: Pelletizing

Bucket Elevator → Storage Bin → Pellet Mill → Cooler → Fan → Cyclone → Double Rollers Crumbler (optional)

The mixed feed is conditioned and compressed into pellets through the pellet mill, then cooled and dried to achieve the desired hardness and durability. An optional crumbler can be used to produce smaller particle sizes for specific applications.

Process 4: Packaging

Bucket Elevator → Rotary Screener → Storage Bin → Packaging Machine

Finished pellets are screened to remove fines and dust, then conveyed to the packaging system for bagging and sealing, ready for storage or shipment.

3. Key Features & Benefits

4. Project Specifications

Parameter    Detail
Project Name    Animal Pellet Feed Production Line
Capacity    5 Ton/Hour
Raw Materials    Corn, Soybean, Wheat, etc.
Pellet Types    Poultry Feed, Chicken Feed, Cattle Feed

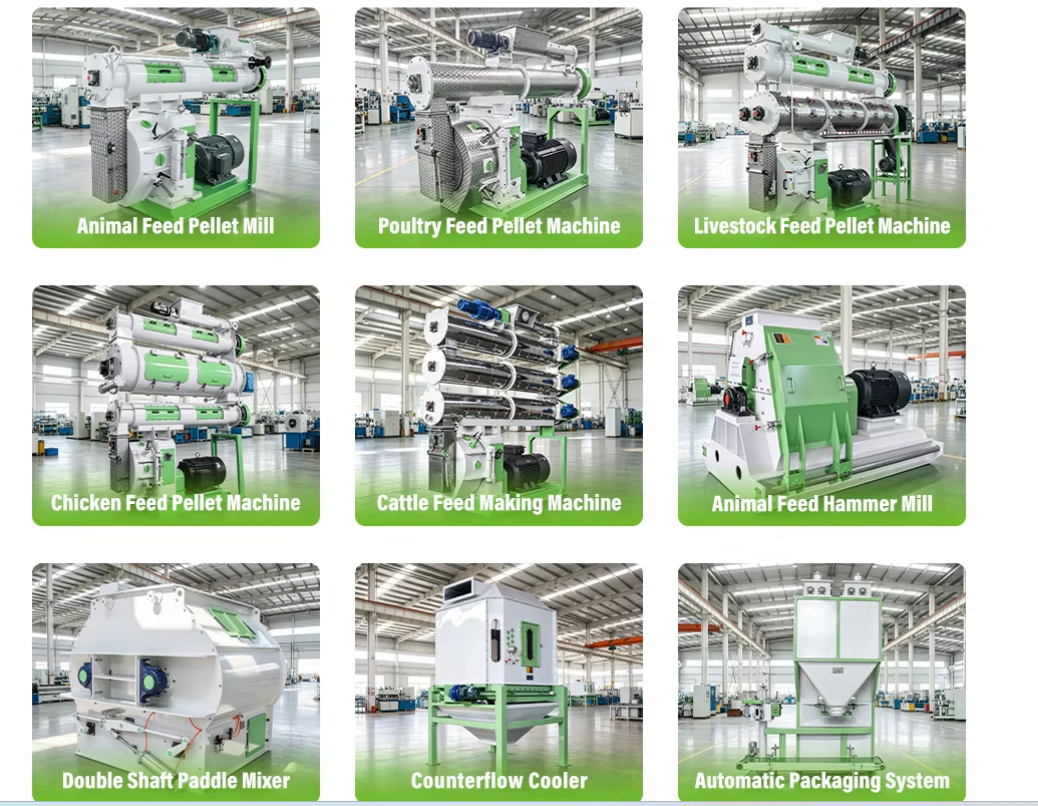

5. Main Equipment List by Process

6. Application Scope

• Poultry Feed: Chickens, ducks, and other poultry species

• Livestock Feed: Cattle, sheep, and other ruminants

• Feed Types: Pellet feed and powder feed

• End Users: Farms, feed mills, and commercial feed manufacturing startups
